70-150 kg Column Palletizer

70-150kg Column Palletizer | Heavy-Duty Stacking for Cartons & Woven Bags

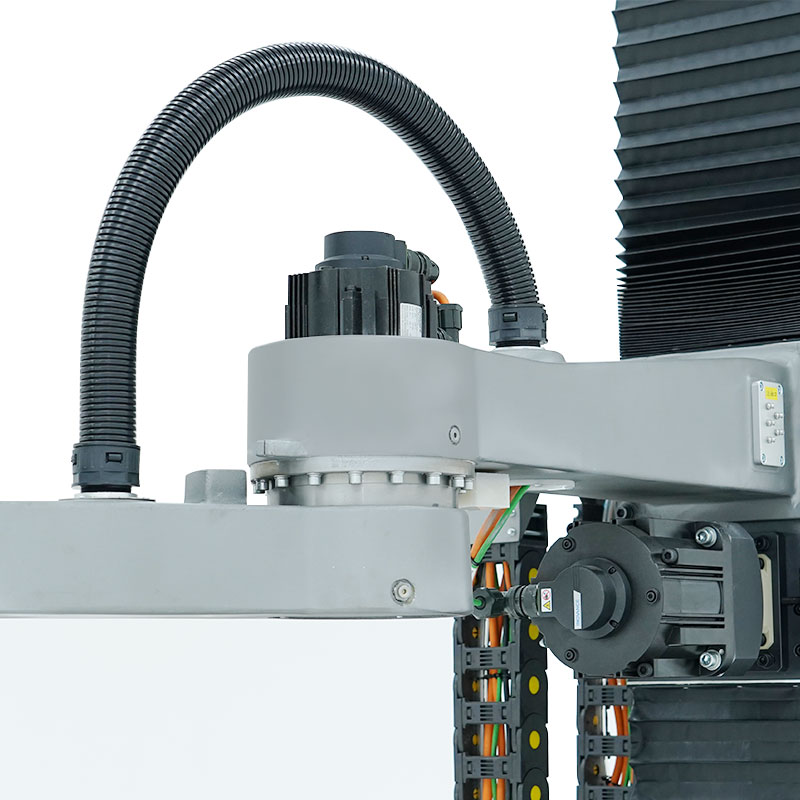

The single-column palletizer, designed for post-production palletizing in various industries, adopts a 4-axis servo-driven structure (lifting, translation, main & gripper rotation shafts) controlled by a motion controller. It supports 290° rotation for dual-pallet simultaneous stacking, matching robot performance. Compatible with diverse products/pallet types, it works standalone or with automatic stackers/conveyors to form a full-auto system. Handheld teach pendant-enabled, it cuts labor needs and intensity significantly. A single standardized unit seamlessly handles cartons, shrink-wrapped packs, and heavy industrial woven bags.

Watch Live Demo
Heavy Payload Capacity: Available in 70kg, 100kg, and 150kg models to handle diverse bulk material stacking.

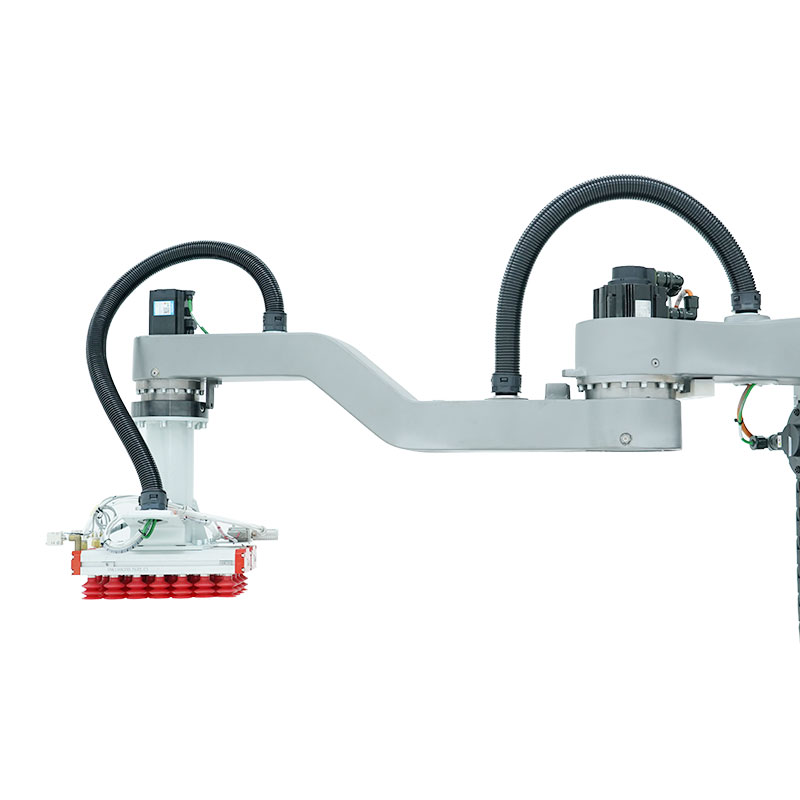

Versatile End-of-Arm Tooling: Supports rapid switching between vacuum suction cups and mechanical clamps to adapt to various packaging shapes.
Advanced Engineering: Features state-of-the-art rotary column technology with a streamlined, modern profile.

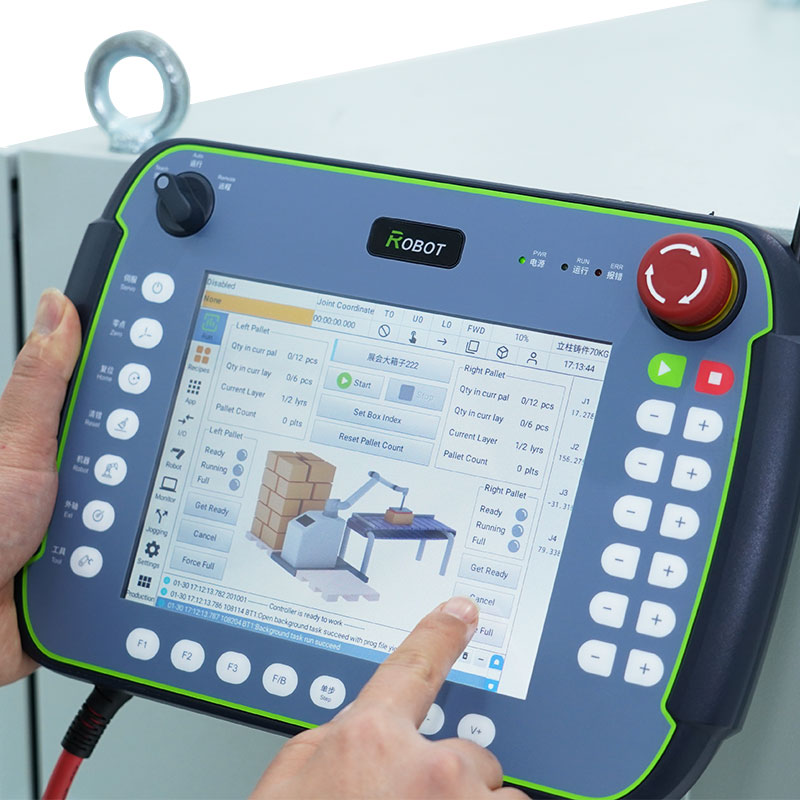

Supports editing via teaching pendant or wired remote control
Industrial Durability: Constructed with high-strength carbon steel and a baking varnish finish to withstand harsh, dusty factory environments.

Product Details

Comprehensive specifications and capabilities

Name
WEX-1800-70
WEX-1800-100
WEX-1800-150
Palletizing Speed 7-9 times/min 6-10 times/min 6-7 times/min
Loading Capability 70 KG 100 KG 150 KG
Applicable Product Carton,Film Bags, Woven Bags, Large Barrels
Suitable Pallet Size L800-1200*W800-1200*150-200 (mm)
Pallet Supply Way Manual Placement/Automatic Placement
Palletizing Gripper Suction Cup/Splint/Gripper
Palletizing Height 1600-1800mm off the ground (depend on gripper and carton)
Working Radius 2000mm 2350mm
Total Height 2775mm 3130mm 3200mm
Applicable Power 380v 50HZ
Air Supply 0.5-0.6kg/m³, 1.5m³/min
Power 7.85KW 9KW 10.5 KW
Weight 930KG 1600KG 1690KG
Essence Material Carbon steel and baking varnish
Color Custom on the requirement (RAL:7035+RAL:1018 for standard machine color)
