Flagship Model
50 kg Movable Palletizer
50kg Moveable Palletizer | Flexible Cross-Line Stacking for High-Mix Production
The lifting palletizing robot serves post-production palletizing in various industries. Based on the standard 4-axis model with an added lifting axis, it enables dual-station palletizing, adapts to diverse products and pallet types with easy adjustment. It easily navigates between multiple packaging lines, maintaining a stable processing speed of 10-15 cycles per minute. It is the ideal solution to minimize fixed equipment investments in high-mix, low-volume production environments.
Cross-Line Mobility: Available with optional guide rollers for easy relocation, even on load-bearing second floors.
Stable High Throughput: Delivers a rapid 10-15 cycles/min, effortlessly clearing peak season bottlenecks.
Rapid ROI (Under 12 Months): Improves production efficiency and reduces costs by replacing a worker with a machine.
Consistent Alignment: Maintains the robot’s optimal working position at all times.

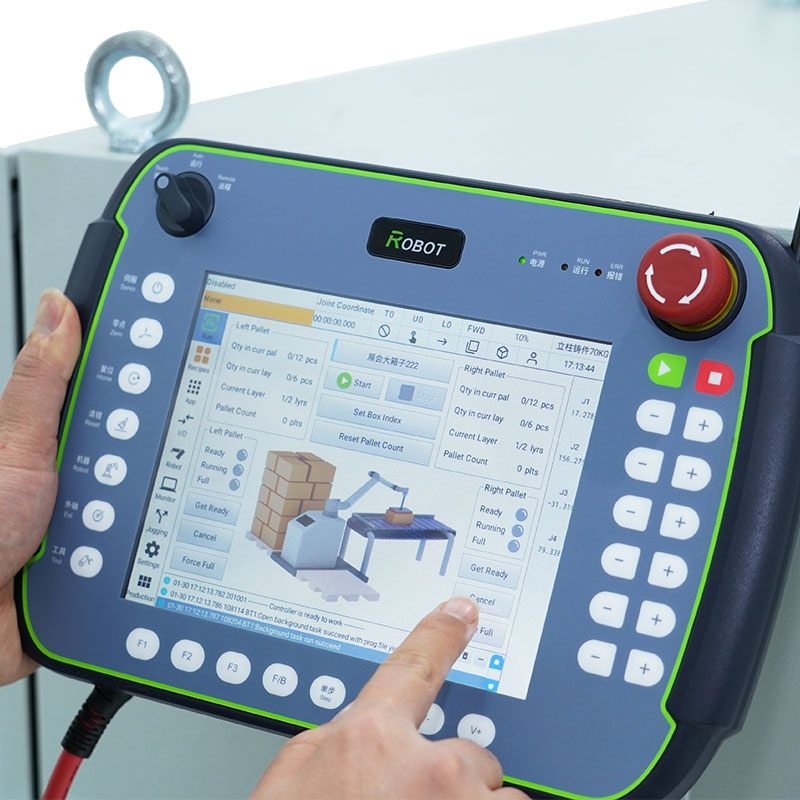

Code-Free Visual Operation: Features an HD industrial touchscreen allowing regular operators to switch palletizing recipes with a single tap.
Product Details
Comprehensive specifications and capabilities
Parameter |
Value |
|---|---|
| Model | WEX-2000-50 |
| Palletizing Speed | 10-15 times/min (actual production capacity depends on the product) |
| Loading Capability | 50 kg |
| Applicable Product | Carton |
| Applicable Palletizing Size | L800-1200*W800-1200*150-200 (mm) |
| Pallet Supply Way | Manual Placement |

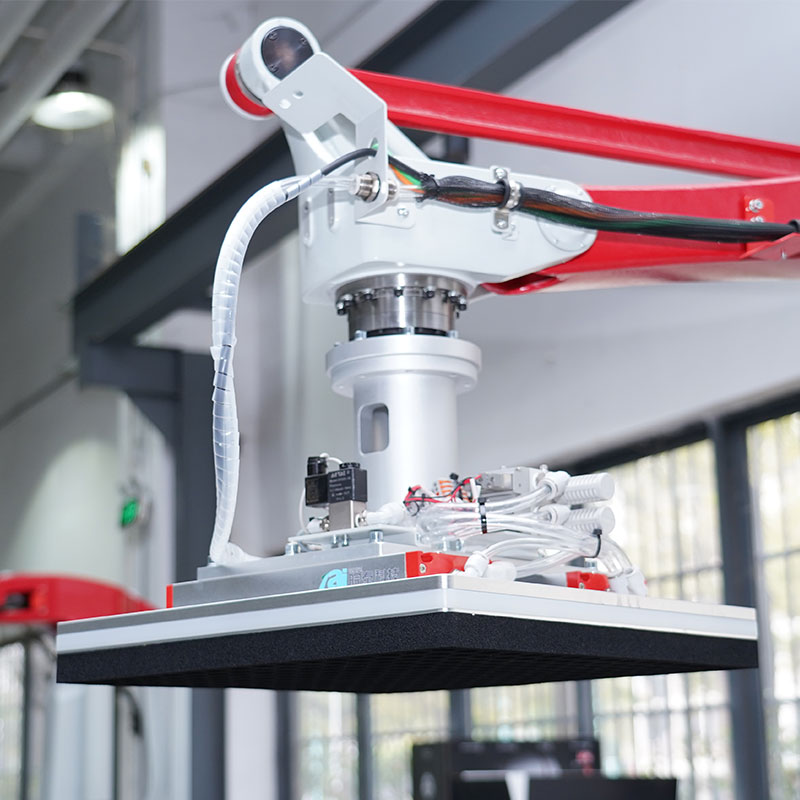

| Palletizing Gripper | Suction Cup |
| Palletizing Height | 1600-2400mm off the ground (determined by the height of the gripper and carton box) |
| Working Radius | 2100 mm |
| Total Height | 3200 mm (including 977 mm lifting base) |
| Applicable Power Supply | 380v 50HZ |
| Air Supply | 0.5-0.6 kg/m³, 1.5M³ /min |
| Power | 7 kW |
| Weight | 980 kg |
| Essence Material | Carbon Steel Baking Paint |
| Color | Standard Color (RAL7035, can be customized according to customer needs) |
