30kg Collaborative Palletizer | Ultra-Compact Carton Stacking for Tight Spaces
A 30 kg collaborative robot can independently complete palletizing operations or work side by side with humans to complete production tasks, replacing manual labor in handling and placing heavy objects, achieving 24-hour non-stop work. Engineered for high-density manufacturing facilities, the WEX-1800-30 Collaborative Palletizer eliminates the need for bulky safety fencing, executing continuous dual-pallet operations within a mere 6-square-meter footprint. It eradicates manual lifting liabilities while typically delivering a full ROI in under 12 months.
Product Details
Comprehensive specifications and capabilities
Parameter |
Value |
|---|---|
| Model | WEX-1800-30 |
| Palletizing Speed | 8-10 times/min (Can customize twin-tank suction system) |
| Loading Capability | 30 kg |
| Applicable Product | Carton |
| Applicable Pallet Dimensions | 1200*1200*140 (mm) |
| Pallet Supply Way | Manual Placement |

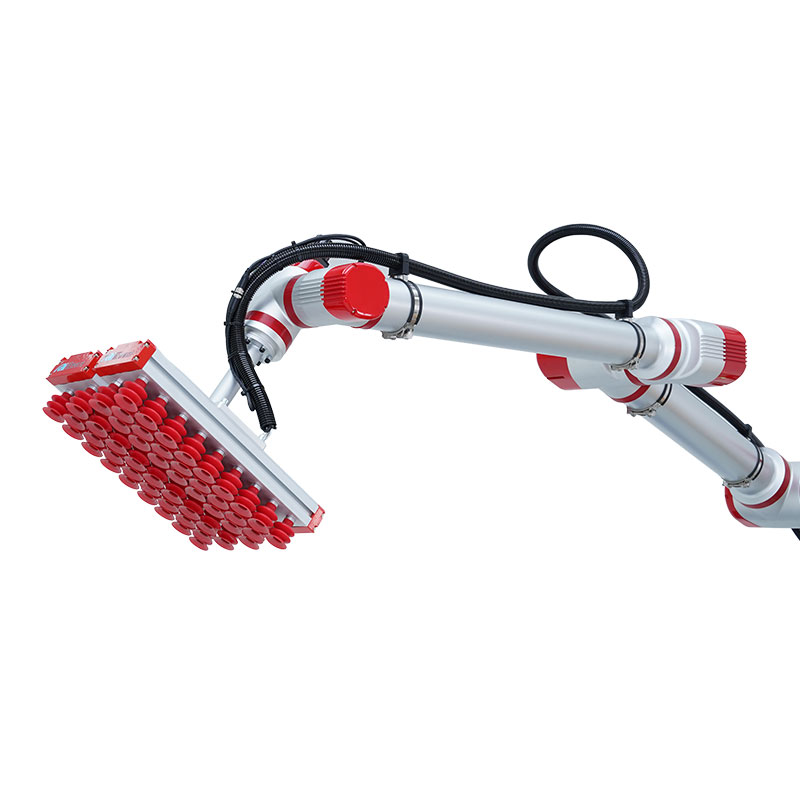

| Palletizing Gripper | Suction Cup |
| Palletizing Height | 300-2400mm (Pallet included) |
| Working Radius | 1800 mm |
| Total Height | 2200-3000mm |
| Area | 6 m³ (including double stack) |
| Air Supply | 0.5-0.6 kg/m³, 1.5m³ /min |
| Power | 3.3 kW |
| Weight | 570 kg |
| Communication | TCPIP Ethernet, dry contact |
